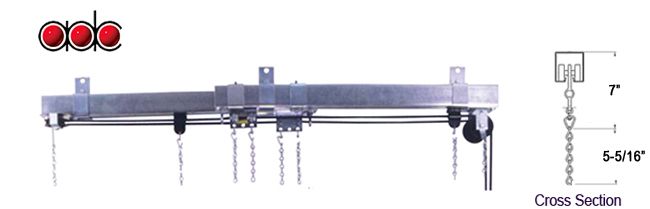

SILENT STEEL® 280 Series Track

ADC SILENT STEEL 280 curtain track is the most famous name in heavy-duty stage tracks. Model 280 steel is used in the majority of stage installations with heavyweight curtains of almost any length and is particularly quiet in operation. Models 281 and 282 can be used for heavier curtains. They are essentially identical to Model 280 except Model 281 is equipped with neoprene-tired ball-bearing carriers and Model 282 is supplied with nylon tired ball-bearing carriers. Both systems are equipped with larger diameter floor and end pulleys.


The ADC 280 series is also available with a black finish (380 Silent Steel® curtain track) at additional cost.


Can be motorized. ADC 280 Series tracks cannot be curved. For more details on other models within the ADC 280 series that offer nylon-tired ball-bearing carriers as well as larger end pulleys and floor pulley or for walk-along operation.

GENERAL SPECIFICATIONS

  • Approximate max curtain weight per foot of track: 20 lbs.

  • Maximum recommended track length (Bi-Part setup): 60 feet.

  • Standard carrier spacing: 12 inches.

  • Approximate curtain stacking space per foot of track: 2.4 inches (standard layout, based on average track length for individual track models)

  • Approximate assembly shipping weight: 4 lbs/linear foot.


1483INV Inverted Wall Bracket
Rango de precios
$70.75
Bulto Completo:
70.75 70.75 USD
1483UNI Wall Bracket Multi-Track Use
Rango de precios
$79.36
Bulto Completo:
79.36 79.36 USD
28 Rotodraper® Pivot Device
Rango de precios
$157.0
Bulto Completo:
157.00 157.0 USD
2800 Curtain Track Channel
Rango de precios
$366.52 - $1035.71
Bulto Completo:
0.00 0.0 USD
2801 Single Carrier
Rango de precios
$15.1 - $15.69
Bulto Completo:
0.00 0.0 USD
2801B Single Carrier

Bulto Completo:
0.00 0.0 USD
2802 Master Carrier
Rango de precios
$48.78 - $53.51
Bulto Completo:
0.00 0.0 USD
2802B Master Carrier with Brake
Rango de precios
$353.79
Bulto Completo:
353.79 353.79 USD
2802B4 Master Carrier with Brake
Rango de precios
$349.88
Bulto Completo:
349.88 349.88 USD
2803 Live End Pulley
Rango de precios
$114.64 - $126.29
Bulto Completo:
0.00 0.0 USD
2803B Center Take Off Pulley
Rango de precios
$337.33
Bulto Completo:
337.33 337.33 USD
2803F Flying Live End Pulley
Rango de precios
$363.49
Bulto Completo:
363.49 363.49 USD
2804 Dead End Pulley
Rango de precios
$63.29 - $70.61
Bulto Completo:
0.00 0.0 USD
2805 Adjustable Floor Pulley
Rango de precios
$98.62 - $118.77
Bulto Completo:
0.00 0.0 USD
2806 Fixed Floor Pulley
Rango de precios
$86.93
Bulto Completo:
86.93 86.93 USD
2807 Lap Clamp
Rango de precios
$15.68 - $33.21
Bulto Completo:
0.00 0.0 USD
2808 Hanging Clamp
Rango de precios
$7.34 - $10.74
Bulto Completo:
0.00 0.0 USD
2808ID Hanging Clamp with Cord Support
Rango de precios
$60.78
Bulto Completo:
60.78 60.78 USD
2809 End Stop
Rango de precios
$8.51 - $11.74
Bulto Completo:
0.00 0.0 USD
2814 Pipe Clamp
Rango de precios
$13.96 - $16.83
Bulto Completo:
0.00 0.0 USD
