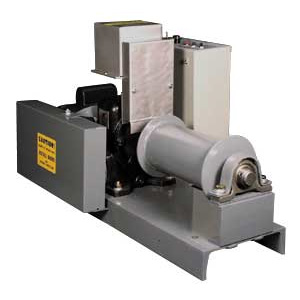

1456 AUTODRAPE® lift curtain machine. 1/3 H.P.
1456 AUTODRAPE® lift curtain machine. 1/3 H.P.
Lift machine designed as an economical solution to the motorization of lift curtains, rated to lift a 300 pound load when connected to a standard cable type lift system. Machine includes an un-grooved 4" diameter x 8" long steel spool, integral rotary limit switches, belt drive, fixed speed AC motor and operates from a single remote control (toggle type). Cable speed is 18 fpm fixed.
Since this machine is not equipped with friction brakes, some drifting may occur when stop command is issued. A fairly high reduction in the gear unit helps minimize this drifting. Stop, Start and Reverse action is provided with a reversing motor and three-position maintained control switch. Integral rotary limit switches are provided the for "Full Raise" and "Full Lower" positions.
Guard (ME-1) not shown. Required for ETL compliance.
These machines are not to be used for the lifting, supporting, or transporting of people. These machines should not be used to move objects over areas where people are present unless suitable safety devices are installed.
CABLE SPOOL
Helps to assure a positive drive and minimize cable slippage. Constructed of coated steel 4" diameter x 8" long. Coated wirecenter cable must be used.
EMERGENCY HAND CRANK
For conversion to hand operation in case of mechanical or power failure.
ROTARY LIMIT SWITCH
Allows for user defined pre-set stops for the "Full Raise" and "Full Lower" positions. Fully adjustable cam type assembly.
CONTROL SWITCH
Three-position maintained toggle type. Only one remote control station can be used with this machine, this being wired temporarily to machine at the factory to allow limit switch setting during installation. Magnetic Control System (MCSA) and Low Voltage Control System (LVCS), available as options and allow the use of any number of remote control switches.
BRAKING EFFECT
Provided by the gear reduction unit only. Provided when switch is moved to center "off" position. A friction type magnetic brake is available as an option.
DISCONNECT SWITCH
Safety toggle switch which removes power to machine’s internal circuitry.
OVERLOAD PROTECTIVE BREAKER
Automatic type helps protect machine, track and curtain against effects of accidental overload. Must be manually reset.
1456 AUTODRAPE® lift curtain machine. 1/3 H.P.
Horsepower: 1/3
Volts: 115 (power & control)
Phase: 1
Lifting speed: 18 fpm
Maximum cable pull: 300 lbs.
Maximum cable travel: 48 feet.
Number of wires for remote control: 3 (plus ground).
Approximate dimensions: 29"L x 11"W x 17"H
Approximate shipping weight: 155 lbs
Specifications
| Key Features | Emergency Hand Crank - Rotary Limit Switches - Cable Spool - Braking Effect - Disconnect Switch - Overload Protective Breaker |
| Cable Speed | 18 fpm (5.5 mpm) |
| Control voltage | 115V |
| Maximum cable travel | 48 ft |
| Number of wires for remote control | 3 (plus ground) |
| Phase | 1 |
| Volts | 115V |
| Height | 17 in (43 cm) |
| Length | 29 in (74 cm) |
| Width | 11 in (28 cm) |
| Weight | 155 lbs (70 kg) |
| Machine Power | 1/3 Horsepower |
| Maximum cable pull | 300 lbs (136 kg) |
