2905 SILVER SERVICE® curtain machine. 1/2 H.P.
Product Specifications |
---|
Cable Speed: 72 fpm (22 mpm) |
Control voltage: 24 VAC |
Maximum cable travel: 90 ft |
Number of wires for remote control: 4 |
Height: 18 in (45.72 cm) |
Length: 30 in (76 cm) |
Width: 18 in (45.72 cm) |
Weight: 220 lbs (100 k |
Curtain Separation Speed: 2.4 fps (0.73 mps) |
Machine Power: 1/2 Horsepower |
Maximum cable pull: NA |

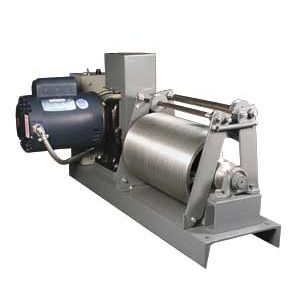

2905 SILVER SERVICE® curtain machine. 1/2 H.P.
No. 2905 is a draw curtain machine designed to operate long heavy weight curtains. Machine includes an 8" diameter x 12" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, cable tension device, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations. Maximum cable travel (3/16" wire-center cable) is 90'. Cable speed is 72 fpm fixed.
Guard (ME-1) not shown. Required for ETL compliance.
Draw curtain machines and drapery motors cannot be used for lifting, since they are not designed for an overhung type of load.
ROTARY LIMIT SWITCHES
Allow for user definable preset stops for the "Full Close" and "Full Open" pre-set positions.
MAGNETIC CONTROL
Provides Start/Stop/Reverse control of the machine. Compatible with most automation systems. LVCS Low Voltage Control 24 VAC standard.
DISCONNECT SWITCH
Toggle switch which removes power to machine’s internal circuitry.
GROOVED CABLE DRUM
Assures positive drive without cable slippage. Coated wire-center cable must be used. Drum must be at least 14' from track live-end pulley, or last pulley in system to allow cable to wind properly on drum.
CABLE TENSION DEVICE
Automatically helps eliminate cable slack. Also helps retain cable within grooves of drum.
EMERGENCY HAND CRANK
Facilitates hand operation of curtain in case of mechanical or power failure.
CONTROL SWITCHES
Three-button type and marked Open, Close and Stop. No limit to number of control stations that can be used. Two supplied with each machine, one built on the machine and one to use as a remote control station.
2905 SILVER SERVICE® curtain machine. 1/2 H.P.
Horsepower: 1/2
Volts: 115 or 230
Phase: 1 or 3
Cable speed: 72 fpm
Curtain separation speed: 2.4 fps
Maximum one way cable travel: 90 feet.
Number of wires for remote control: 4
Control voltage: 24 VAC
Approximate dimensions: 30"L x 18"W x 18"H
Approximate shipping weight: 220 lbs
