6505TV HERCULES® curtain machine. 3/4 H.P
Product Specifications |
---|

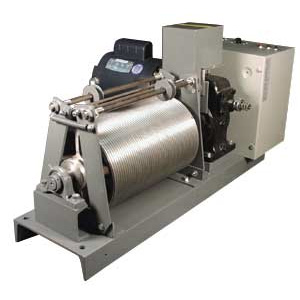

6505TV HERCULES® Curtain Machine. 3/4 H.P.
No. 6505-TV curtain motor combines versatility with the power and drum capacity needed to operate large and heavy draw curtains. This draw curtain machine is equipped with electronic frequency control. The most versatile of the ADC line, these machines provide all of the features of an intermediate draw machine plus user definable variable speed control, acceleration ramps, deceleration ramps, overload protection, low voltage control, emergency stop loops and a host of other features. In addition these machines allow the use of inverter duty 3-phase motors on single phase power sources. Machines are equipped with integral limit switches for deceleration and emergency over-travel, programmable frequency drive units, low-voltage control, and can be operated from any number of remote control stations (except speed adjustment is so equipped). If versatility is a project requirement, the "TV" series of machines are the best option. A Cable Tension Device is included as standard equipment. A magnetic brake, for precise stopping, is available as an option.
Output drums are 8" diameter x 12" long and are grooved for 3/16" wire center cable. Maximum cable travel is 90'. Cable speed is 0 to 72 fpm.
