7005TV HERCULES® curtain machine. 1 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/344/image_1920?unique=c9b38b2
Price Ranges
$10626.06
Full Bulk:
Item #101591

10,626.06 10626.06 USD 10,626.06

0.00

    This combination does not exist.

    1 yard(s)
    meter(s)
    Minimum Purchase Required: 1 Unit(s)
    Product Specifications

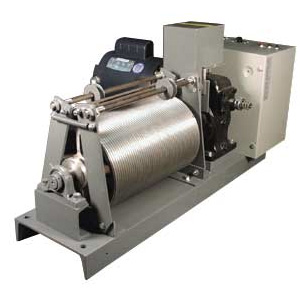

    7005TV HERCULES® Curtain Machine. 1 H.P.

    Models 7005-TV is a variable speed powerful curtain machine that combines versatility with power and drum capacity needed to operate extra large and super heavy draw curtains. Equipped with electronic frequency drives, the TV series machines are the most versatile in the ADC line.

    While designed for draw applications, this machine offers a multitude of parameters that can be programmed in the field to meet a variety of applications. Parameters such as run speed, maximum obtainable speed, minimum obtainable speed, acceleration ramp time and deceleration ramp time are easily changed at the drive. Each machine is provided with deceleration limit switches which allow the machine to decelerate to a stop rather than abruptly stop at the end of its travel. These machines also feature emergency overtravel limit switches and push buttons which bypass the deceleration ramp time and shut the machine off immediately. The operation of these machines is Start/Stop/Reverse from any point of travel and low voltage control is standard. If versatility is a project requirement, the "TV" series of machines are the best option. A Cable Tension Device is included as standard equipment. A magnetic brake, for precise stopping, is available as an option.

    Output drums are 8" diameter x 12" long and are grooved for 3/16" wire center cable. Maximum cable travel is 90'. Cable speed is 0 to 72 fpm.
