6507TV HERCULES® lift curtain machine. 3/4 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/353/image_1920?unique=c9b38b2
Price Ranges
$10262.8
Full Bulk:
Item #101600

10,262.80 10262.800000000001 USD 10,262.80

0.00

    This combination does not exist.

    1 yard(s)
    meter(s)
    Minimum Purchase Required: 1 Unit(s)
    Product Specifications

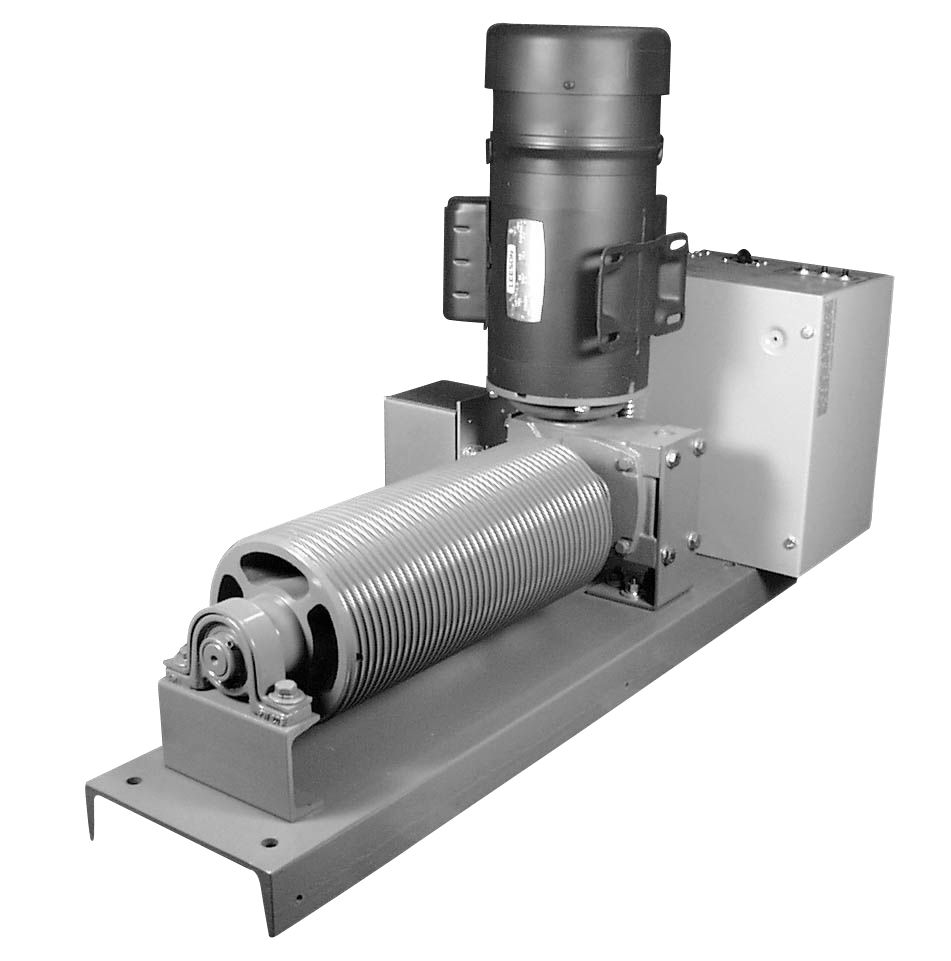

    6507TV HERCULES® Lift Curtain Machine. 3/4 H.P.

    Lift curtain machine with electronic frequency control, and rated to lift a 150 pound load when connected to a standard cable type lift system. TV Variable speed lift machines are the most versatile of the ADC line. These machines provide all of the features of an intermediate lift machine plus user definable variable speed control, acceleration ramps, deceleration ramps, overload protection, low voltage control, emergency stop loops and a host of other features. In addition these machine allow the use of inverter duty 3-phase motors on single phase power sources. Machines are equipped with integral limit switches for deceleration and emergency over-travel, programmable frequency drive units, low-voltage control, and can be operated from any number of remote control stations (except speed adjustment if so equipped). Output drum is 6" diameter x 14" long and is grooved for 3/16" wire center cable. Maximum cable travel is 70'. Cable speed is 0 to 54 fpm.
