7007 HERCULES® lift curtain machine. 1 H.P.
Product Specifications |
---|

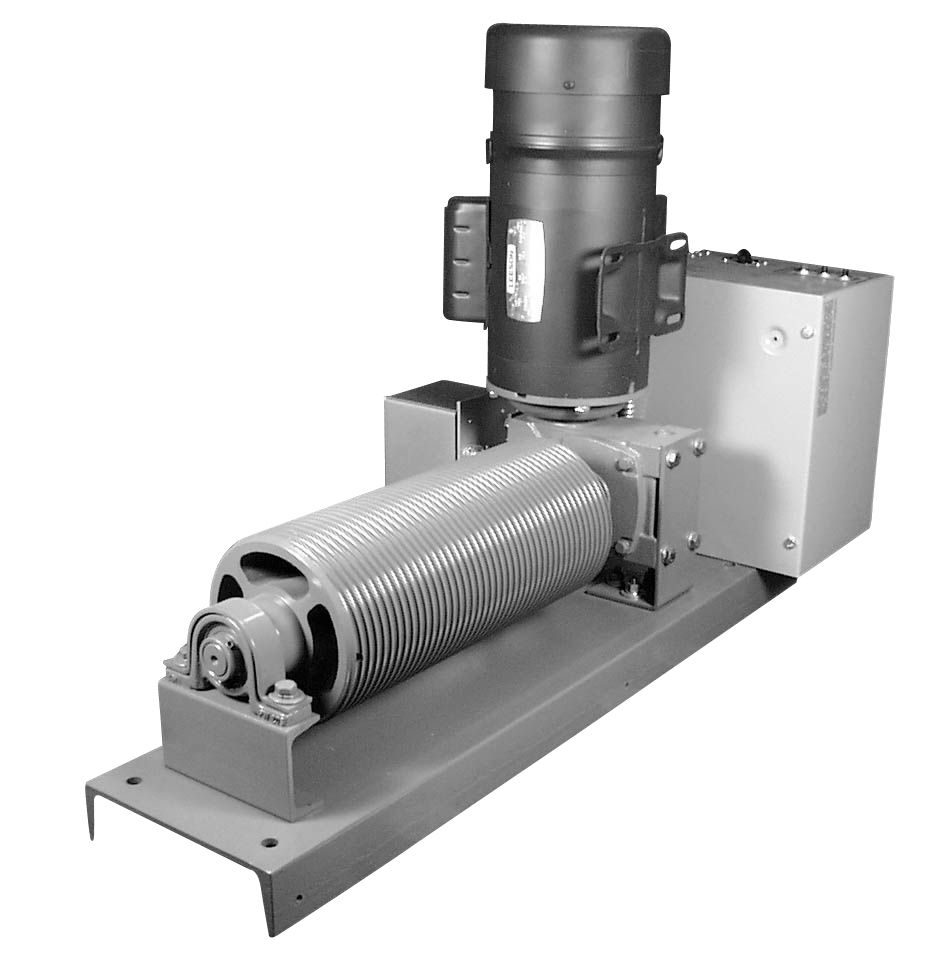

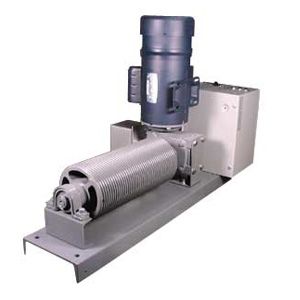

7007 HERCULES® Lift Curtain Machine. 1 H.P.
Lift machine designed for operation of motorized Austrian, Contour, Waterfall, and Gym Divider curtains and rated to lift a 200 pound load when connected to a standard cable type lift system. Machine includes 6" diameter x 14" wide helical grooved drum grooved for 3/16" wire center cable, right-angle gear reducer, integral limit switches, outboard support bearing, magnetic-control-system, and can be operated from an unlimited number of remote control stations (push-button type).
This unit is capable of lifting, without the need of counterweights, substantial loads in accordance with established maximum weights. Each machine is equipped with a built-in magnetic brake to facilitate precise positioning. Complete with magnetic friction brakes, Stop, Start and Reverse control plus direct drive, makes this machine completely versatile.
Maximum cable travel is 70'. Cable speed is 54 fpm fixed.
