9507TV HERCULES® lift curtain machine. 5 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/359/image_1920?unique=c9b38b2
Price Ranges
$17719.31
Full Bulk:
Item #101606

17,719.31 17719.31 USD 17,719.31

0.00

    This combination does not exist.

    1 yard(s)
    meter(s)
    Minimum Purchase Required: 1 Unit(s)
    Product Specifications

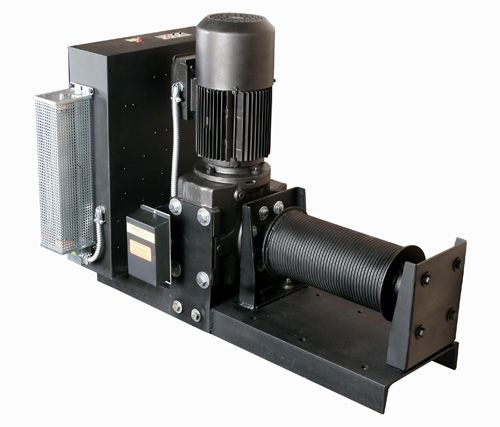

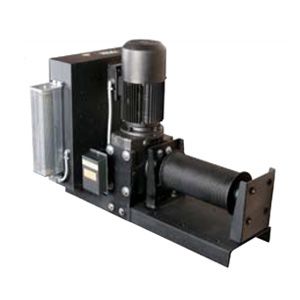

    9507TV HERCULES® Lift Curtain Machine. 5 H.P.

    Hercules® Model 9507TV is the most powerful lift machine of the ADC line. Equipped with electronic frequency drive control, this machine provides versatility and protection for the most demanding lift applications. The 9507TV machine offers a multitude of parameters that can be programmed in the field to meet almost any project requirement speed, maximum obtainable speed, acceleration ramp time and deceleration ramp time are easily changed right at the drive. The machine is also equipped with deceleration limit switches which allow the machine to gradually decelerate to a stop, dissipating inertial energy rather than abruptly stopping at the end of its travel. The machine does feature emergency overtravel limit switches and fast stop push buttons which bypass the deceleration ramp and shut the machine off immediately in the event of a problem during operation. The operation of these machines is Start/Stop/Reverse/Fast Stop from any point of travel and low voltage controls is standard. If versatility and power are a requirement, the Model 9507TV is an excellent choice. Maximum cable travel: 55 feet.
