680 Pipe Batten Clamp
Price Ranges
$17.0
Item #104693
| Product Specifications |
|---|
| Material: Steel |
| Finish: Black |
| Weight: 18.6 oz |
| Kit: Two halves + assembly fasteners |
| Pipe I.D.: 1-1/2" |

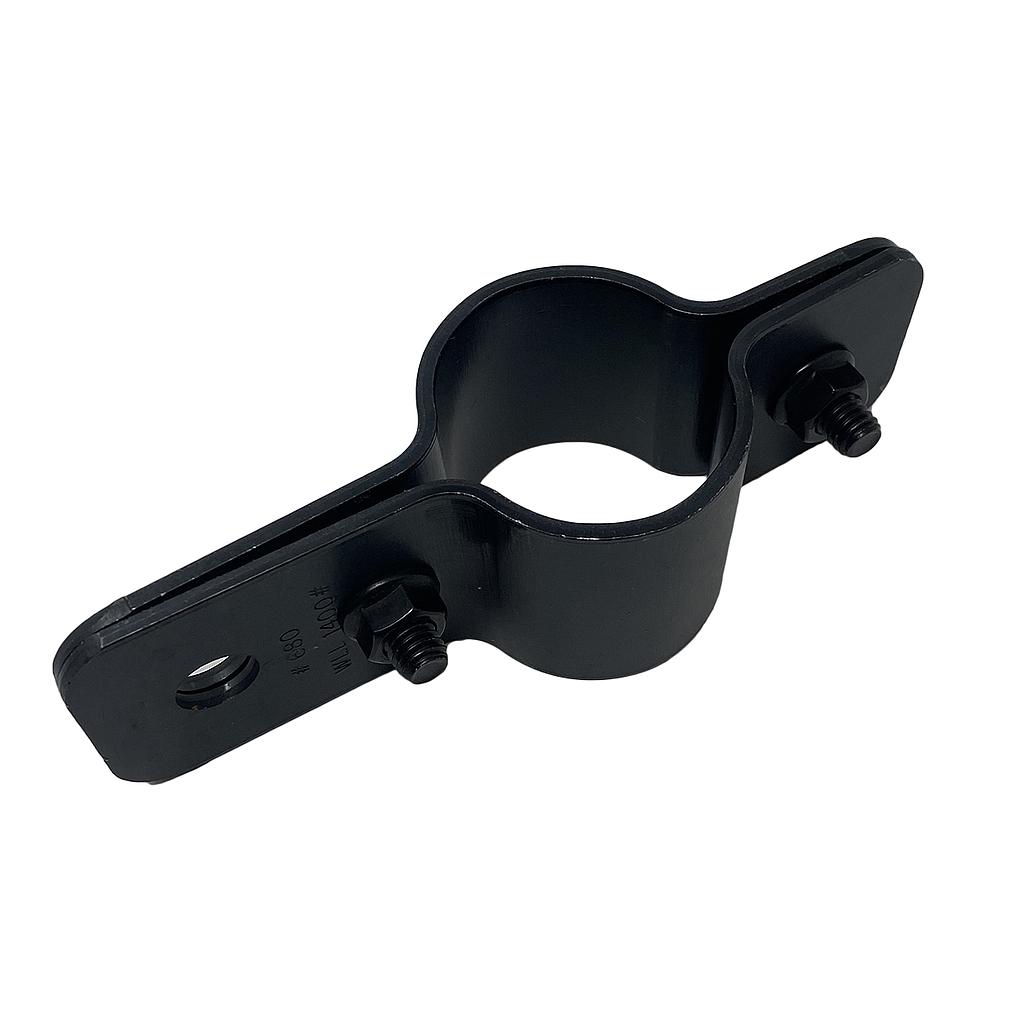

#680 Black Batten Clamp, Heavy-Duty
Batten Suspension Clamp. Two-piece assembly is attached using 3/8" Grade 5 bolts. Formed of 10 gauge steel for snug attachment to 1-1/2" Schedule 40 pipe battens. The top hole is sized for installation of shackle, thimble, turnbuckle or repair link. Black Finish.
Working load limit of 1400 pounds based upon straight pull. One clamp required for every 4 ft of pipe, plus an extra one on the end.
For 1-1/2” I.D. Schedule 40 pipe
Weight: 1 set 18.6 oz.
