Adjustable Uprights

https://www.sktheatricaldraperies.com/web/image/product.template/297/image_1920?unique=c9b38b2
Price Ranges
$63.8 - $243.0
Full Bulk:
Item #101642

63.80 63.800000000000004 USD 63.80

0.00

  • Material
  • Finish
  • Length
  • Kit

This combination does not exist.

1 yard(s)
meter(s)
Minimum Purchase Required: 1 Unit(s)
Product Specifications
Material: Heavy duty aluminum
Kit: Two / Three piece telescoping
see more... see less...

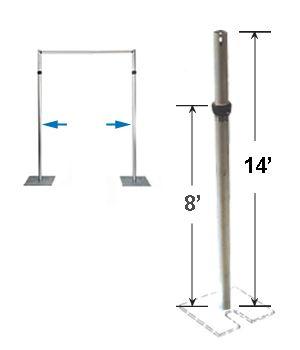

Two Piece Telescoping Upright with

Adjustable Length

Manufactured from heavy duty 2” diameter and 1 13/16” diameter aluminum pipe. Equipped with one set of (4) slots, positioned every 90°. Slots are located 3/8" from top, leaving a solid ring for added strength. One additional set of slots at 3' high.

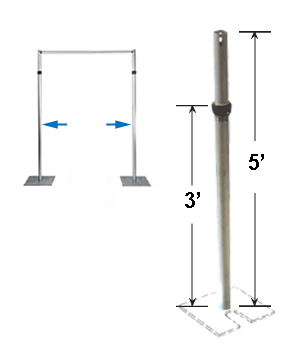

0026-001642/0026-001643

Collapsed length: 3' long.
Maximum length: 5’ long.
Weight: 2.6 lbs.


0026-001644/0026-001645

Collapsed length: 4’ long.
Maximum length: 7’ long.
Weight: 3.2 lbs.



0026-001646/0026-001647

Collapsed length: 5’ long.
Maximum length: 8’ long.
Weight: 3.7 lbs.



0026-001648/0026-001649

Collapsed length: 6’ long.
Maximum length: 10’ long.
Weight: 4.5 lbs.


0026-001650/0026-001651

Collapsed length: 7’ long.
Maximum length: 12’ long.
Weight: 5.4 lbs.



0026-001652/0026-001653

Collapsed length: 8’ long.
Maximum length: 14’ long.
Weight: 6.2 lbs.



0026-001654/0026-001655

Collapsed length: 9’ long.
Maximum length: 16’ long.
Weight: 7 lbs.



0026-001656/0026-001657

Collapsed length: 10' long.
Maximum length: 18 long.
Weight: 7.8 lbs.



0026-001658/0026-001659

Collapsed length: 11’ long.
Maximum length: 20’ long.
Weight: 11 lbs.

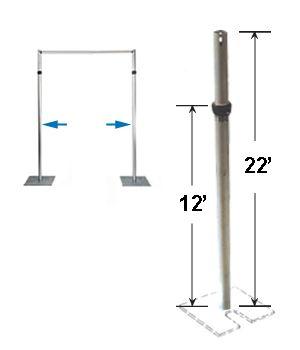

0026-001660/0026-001661

Collapsed length: 12’ long.
Maximum length: 22’ long.
Weight: 13 lbs.

0026-001662/0026-001663

Collapsed length: 13’ long.
Maximum length: 24' long.
Weight: 14 lbs.

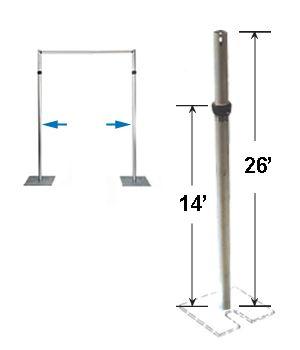

0026-001664/0026-001665

Collapsed length: 14’ long.
Maximum length: 26' long.
Weight: 16 lbs.


Three Piece Telescoping Upright with Adjustable Length​

Manufactured from heavy duty 2” diameter, 1 13/16” diameter and 1 5/8” diameter aluminum tube. Equipped with two sets of (4) slots, positioned every 90°. Slots are located 3/8" from top, leaving a solid ring for added strength. One additional set of slots at 3' high.

0026-001666/0026-001667

Collapsed length: 5’ long.
Maximum length: 11’ long.
Weight: 5.4 lbs.


0026-001668/0026-001669

Collapsed length: 6’ long.
Maximum length: 14’ long.
Weight: 6.2 lbs.

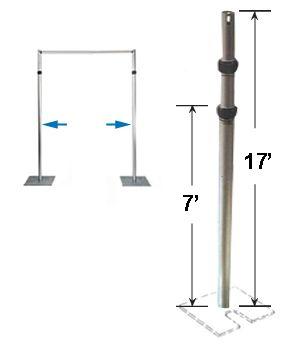

0026-001670/0026-001671

Collapsed length: 7’ long.
Maximum length: 17’ long.
Weight: 7.8 lbs.

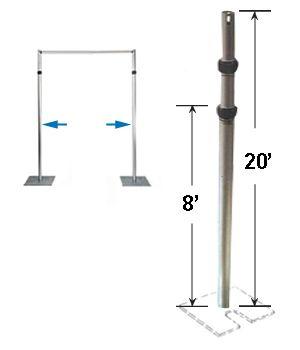

0026-001672/0026-001673

Collapsed length: 8’ long.
Maximum length: 20’ long.
Weight: 13.5 lbs.

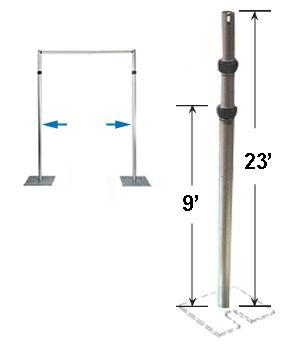

0026-001674/0026-001675

Collapsed length: 9’ long.
Maximum length: 23’ long.
Weight: 15 lbs.

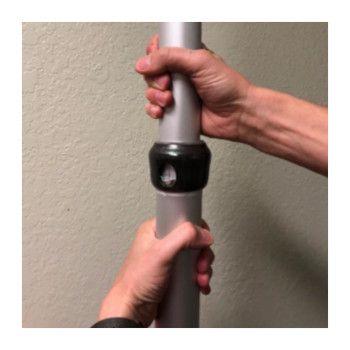

HOW SLIP-LOCK WORKS?

The SLIP-LOCK collar assembly locks automatically when the inner pole is raised vertically to the desired height. As a vertical load is applied downward, the ball-taper lock feature locks tighter. The more pressure applied downward the tighter it will lock. To release the lock, simply raise the inner pole slightly and lift the release ring. For SAFETY, hold the inner pole firmly while raising or lowering the height.

Product Features

Easy to setup

Accurate and rapid height adjustment.

Flexible

No knobs or wing nuts to adjust.

No tools

No tools required for set-up or disassembly

Durable

No knobs or wing nuts to adjust.

Quickly adjusts

To any height within the specific model range

NOTE: Minimum height (collapsed height) may increase slightly by the height of the base pin.
