Mega-Gridlock
| Product Specifications |
|---|
| Material: Steel - Aluminum |
| Weight: 1 lb |
| Kit: Gridlock halves - Fasteners |

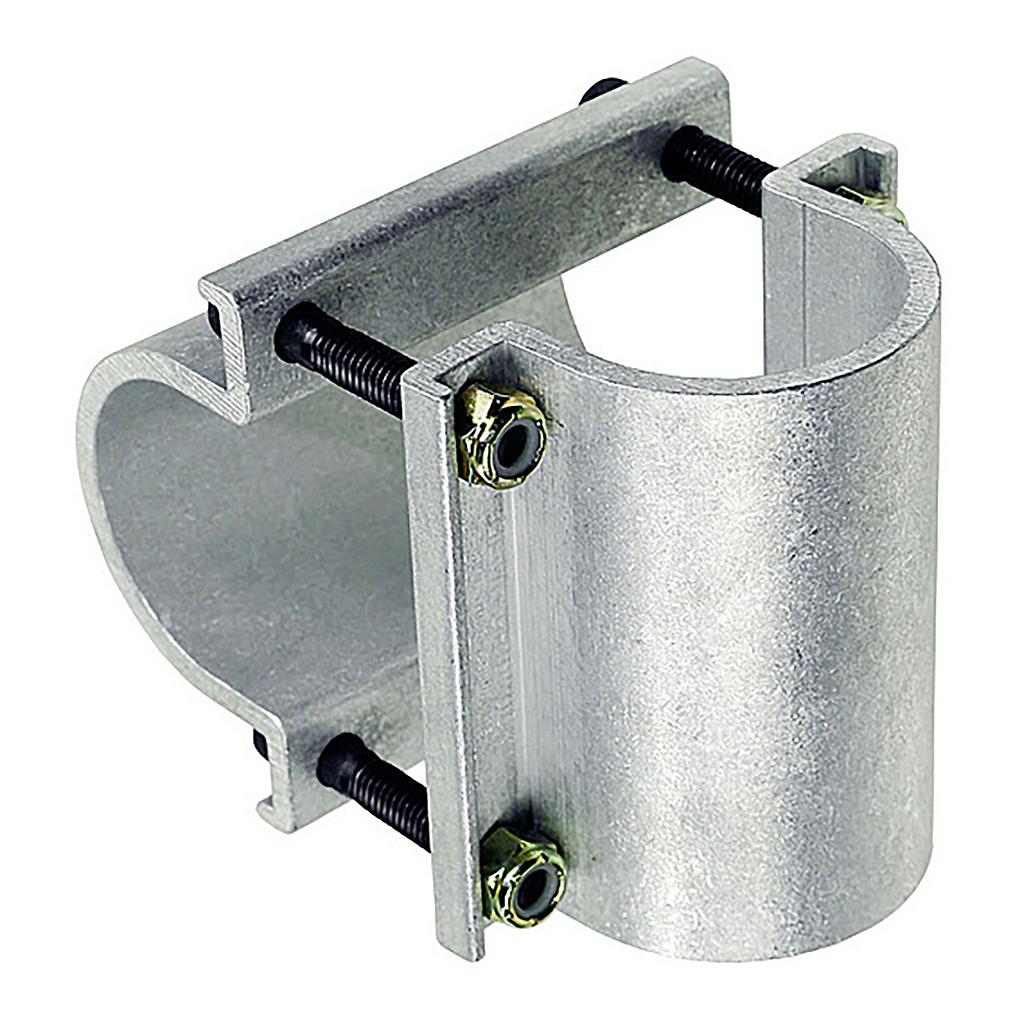

Mega-Gridlock Pipe and Lighting Grid Clamp
Designed for permanent pipe grid installations in studios and theaters. Joins 2 overlapping pipes together in a 90 degree joint. Grooves act as a wrench holding the nut from turning while installing. Installs with a hex key tool in a battery drill.
Fastens any combination of 1-1/4" pipe (1.66" OD), 1-1/2" pipe (1.9" OD) and 2" OD Tube. (Tight fit on 2" OD tube).
Does not work with smaller diameter pipes.
The Mega-Gridlock can be used on curved track down to a radius of 3 feet (or a circle with a diameter of 6 feet).
Tighten the bolts to 11 foot-pounds, which is about as tight as can be done with a 6" hex key wrench.
Minimum Size: 1.25" pipe (1.66" OD pipe)
Maximum Size: 1.5" pipe (1.90" OD pipe) and 2" OD truss tube
Working Load Limit: 1250 lb (568kg)
Dimensions: 3.65″ × 3.65″ x 4.375 tall max (4.375" plus the thickness of the 2 pipes joined.)
Weight: 16 oz.
Hardware
4 each – 5/16″ × 2″ socket head cap screws
4 each – 5/16" Nylock nuts
